Automobile Production Line Automation Equipment Manufacturer

Based on their technical capabilities, the Automation Technology Team develops, manufactures, installs, and even services testing devices used in automobile assembly plants to test liquid injectors for mass production lines, including various liquid reservoirs and state-of-the-art driving support technology devices for finished automobiles

SCC/ASCC Test Equipment

Product Name

Advanced Smart Cruise Control Test Equipment

Product Overview

The Advanced Smart Cruise Control System detects the speed and the distance of the car ahead and controls the constant distance between two cars by itself when it senses a preceding car while the car drives in cruise-control without the preceding vehicles. The system helps the car to stop and drive automatically within a few seconds when the preceding car stops and drives. The Advance Smart Cruise Control Test Equipment performs an operational test and calibrates an advance smart cruise control system.

Product Configuration

Test Process	Wheel Alignment Process	Test Precondition: Vehicle Needs to be Aligned in the Center
Test Process	Test Condition: At 2.5 m in front of a vehicle
Configuration

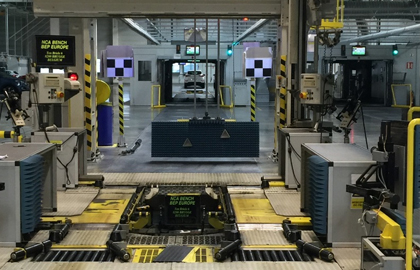

Installation Structure	Lower Pit	Upper Gantry
Supplier	Mando / Mobis

SCC_ASCC 검사방법

Align a test car.

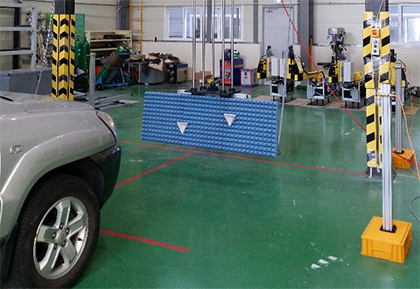

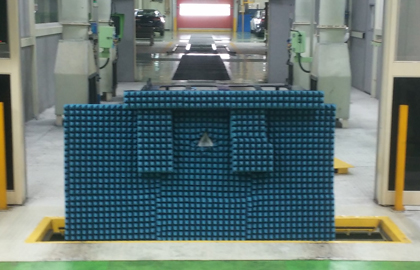

Place the target on the home position in front of a vehicle.
Operate the SCC module of the vehicle.
The radio waves from the SCC radar hit the target and reflect, and the test system catches reflected waves.

Lay-Out
