Automobile Production Line Automation Equipment Manufacturer

Based on their technical capabilities, the Automation Technology Team develops, manufactures, installs, and even services testing devices used in automobile assembly plants to test liquid injectors for mass production lines, including various liquid reservoirs and state-of-the-art driving support technology devices for finished automobiles

Brake Fluid Filling Equipment

Product Name

Brake Fluid Filling Equipment

Product Overview

Brake Fluid Filling Equipment is a brake fluid filling system for automobile mass-production and assembly lines. It connects a GUN to a vehicle and creates a vacuum, and then fills brake fluid. It automatically performs brake fluid filling procedures after being connected to a vehicle. All procedures are automatically controlled by PLC and move along with a conveyor using a synchronizer. It automatically resets after completing the procedures.

Basic specification

  • Vacuum Pump capacity : 330[L/min]
  • Filling method : Top-off
  • Vacuum degree : 2 torr below at Gun
  • Touch screen : operating status display
  • System configuration

Basic Operating Condition

  • Synchronized with final slat conveyor
  • Speed control : inverter
  • Safety operate : over-run stopper/lamp temporary, emergency stop

Product Image

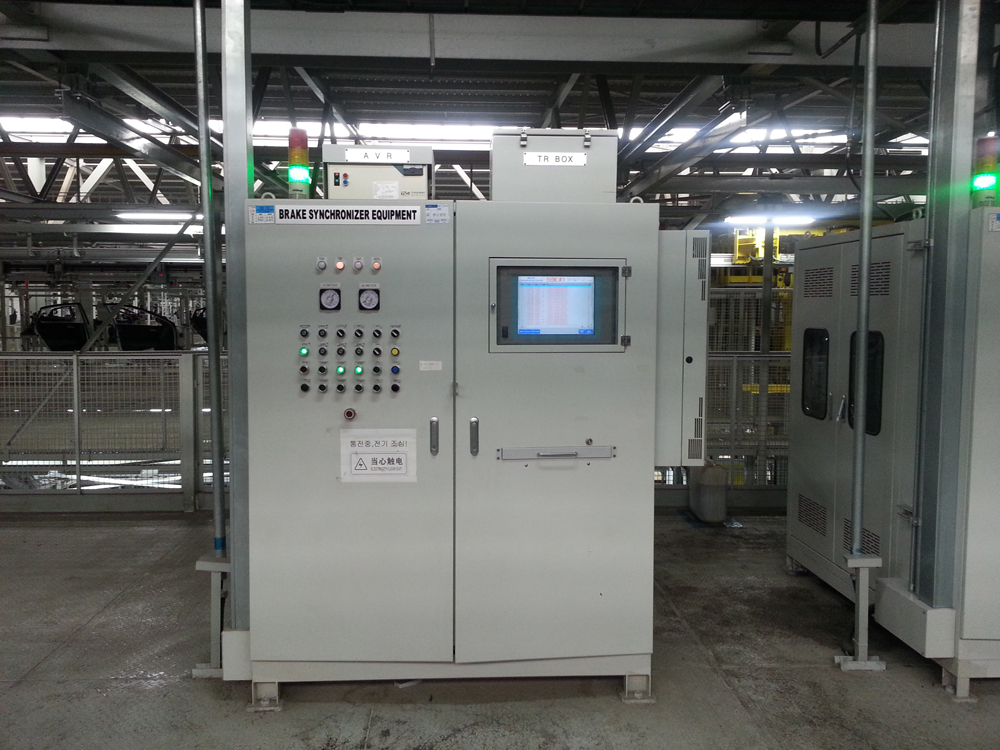

Main Brake Fluid Filling Panel

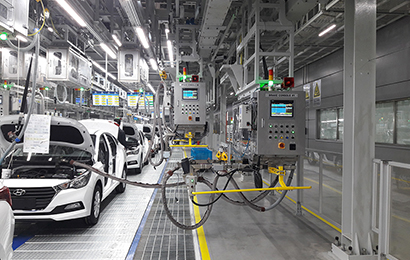

Main Brake Fluid Filling System

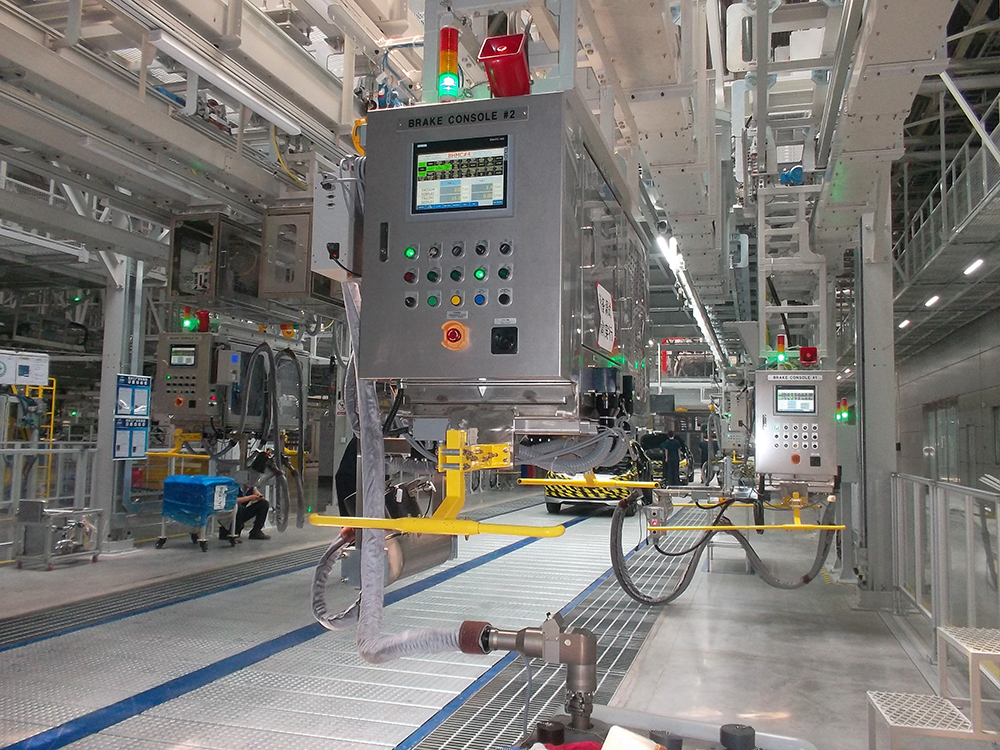

Brake Fluid Filling Equipment Console
Brake Fluid Filling Equipment Console
Brake Fluid Filling Equipment Console
Brake Drum Unit

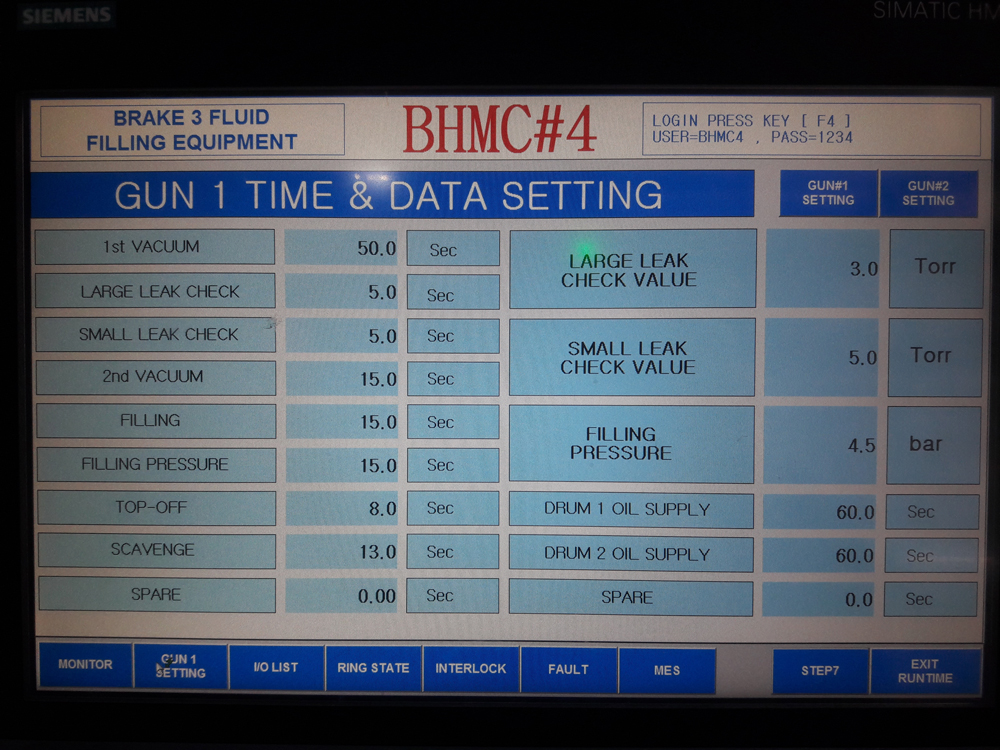

Brake Fluid Filling Equipment Software
Brake Fluid Filling Equipment Software
