Automobile Production Line Automation Equipment Manufacturer

Based on their technical capabilities, the Automation Technology Team develops, manufactures, installs, and even services testing devices used in automobile assembly plants to test liquid injectors for mass production lines, including various liquid reservoirs and state-of-the-art driving support technology devices for finished automobiles

Refrigerant Charging Equipment

Product Name

Refrigerant Charging Equipment

Product Overview

Refrigerant Charging Equipment is a refrigerant gas charging system for automobile mass-production and assembly lines. It connects a GUN to a vehicle and creates a vacuum, and then charges refrigerant gas. It automatically performs refrigerant charging procedures after being connected to a vehicle. All procedures are automatically controlled by PLC and move along with a conveyor using a synchronizer. It automatically resets after completing the rocedures.

Basic specification

Vacuum Pump capacity : 330 [L/min]
Filling method : vacuum & fixed amount filling
Vacuum degree : 1 torr below
System configuration

Basic Operating Condition

Synchronized with final slat conveyor
Speed control : inverter
Safety operate : over-run stopper/lamp temporary, emergency stop

Product Image

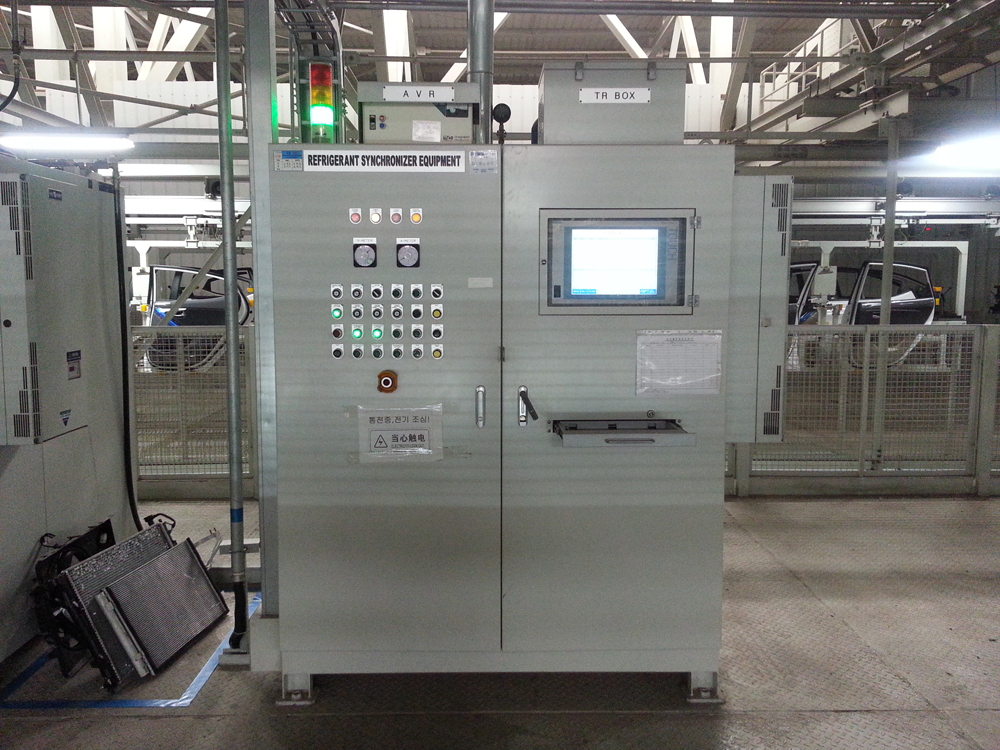

Main Refrigerant Charging Equipment Panel

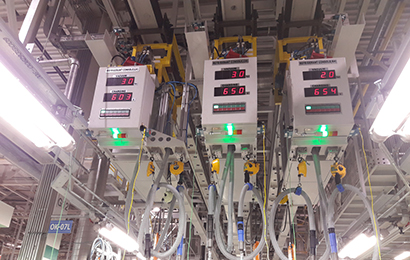

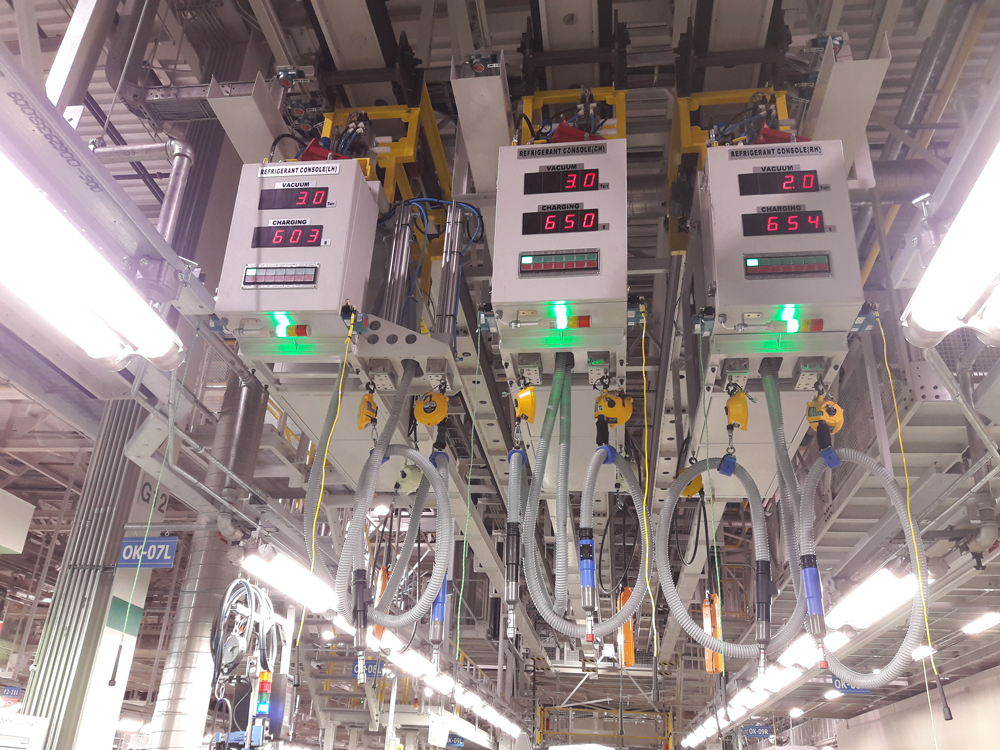

Refrigerant Charging Equipment Console

Refrigerant Charging Equipment Software
